ARD P5 Pro Dual Mode Magnetic Foam Cannon

Brand : ARD

Model : ARD P5 Pro Foam Cannon

Size : 1000ml

Required Pressure Washer

Connector : ¼"Quick Release Connector

Orifice : 1.2mm

Material : Brass & PA Bottle

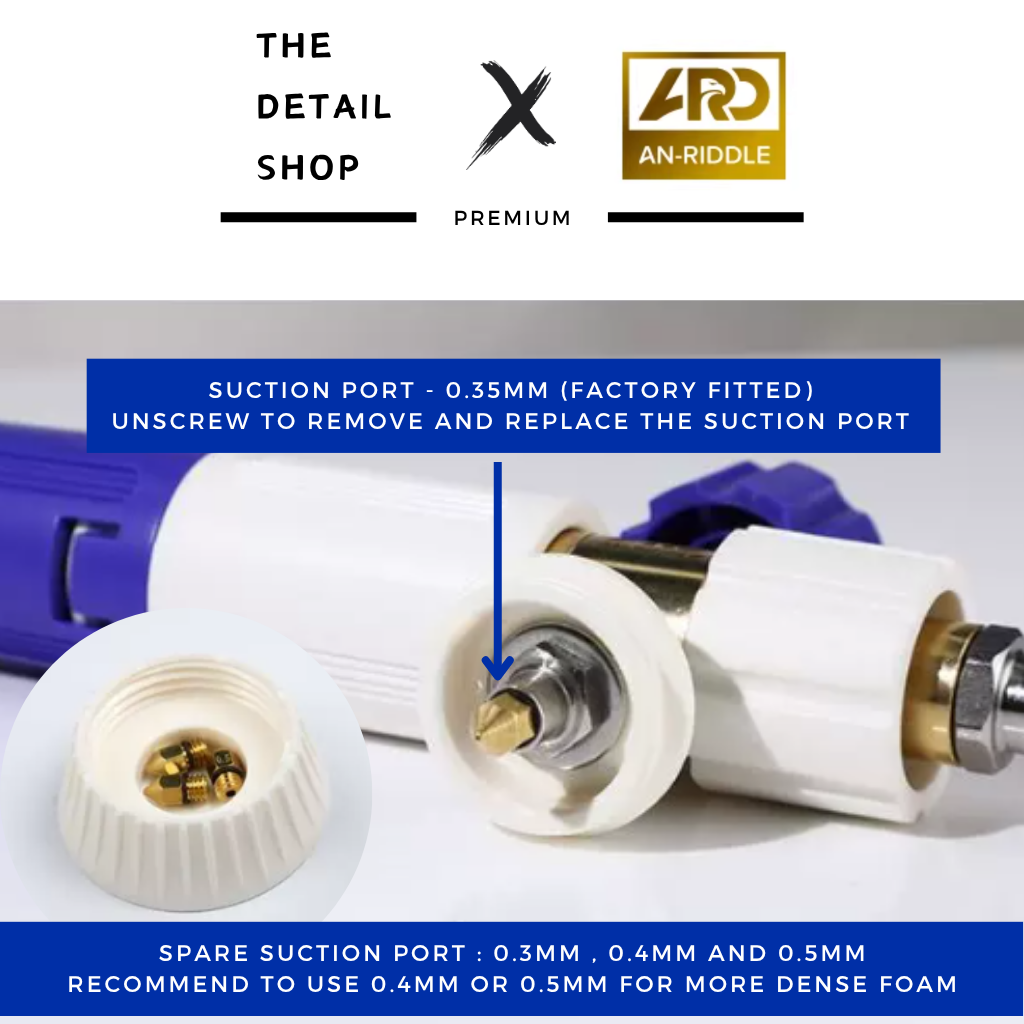

Suction Port : 0.35mm (Factory Fitted)

Spare Suction Port : 0.3mm , 0.4mm and 0.5mm (Use 0.4mm or 0.5mm For Dense Foam)

How to remove suction tube than unscrew suction port 0.35mm than install 0.4mm or 0.5mm

Applicability

• Automotive paint surface

Features

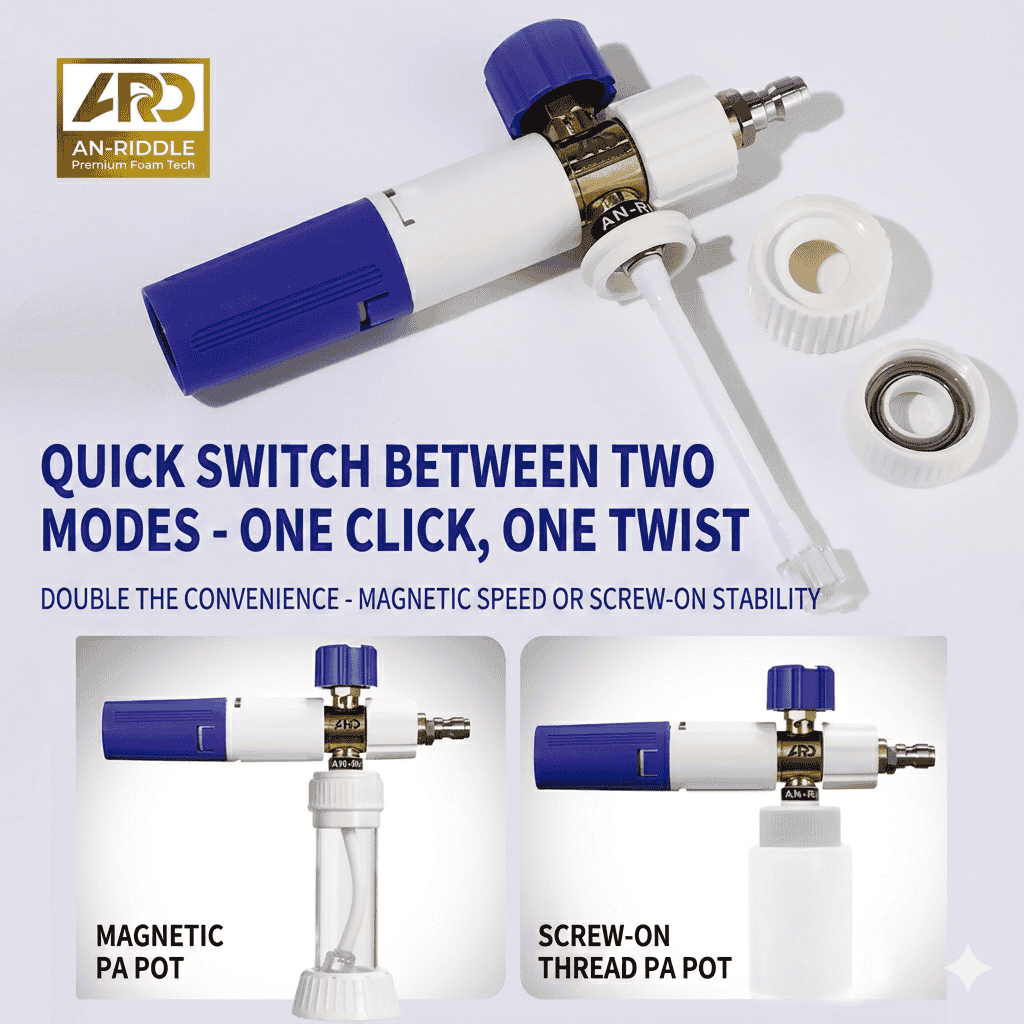

• Dual Mode - Choose between the magnetic pot (quick click) or the negative pressure pot (screw-on).

• Ready To Use - Only use pre wash or snow foam (No dilution with water needed)

• Enjoy the convenience of the speed of magnetic suction and the stability of screw-on threads.

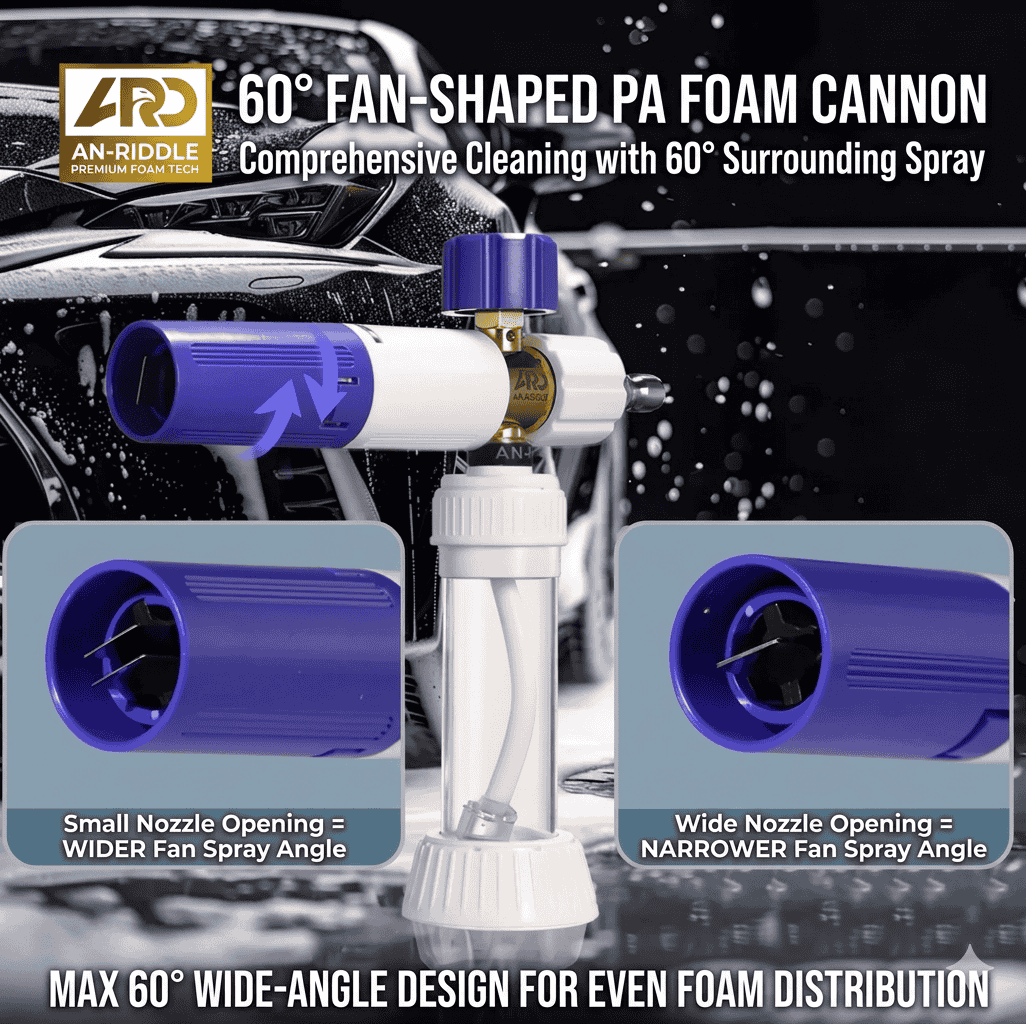

• Spray Pattern - Rotates to adjust the spray from a narrow 0° stream to a wide 60° for even coverage.

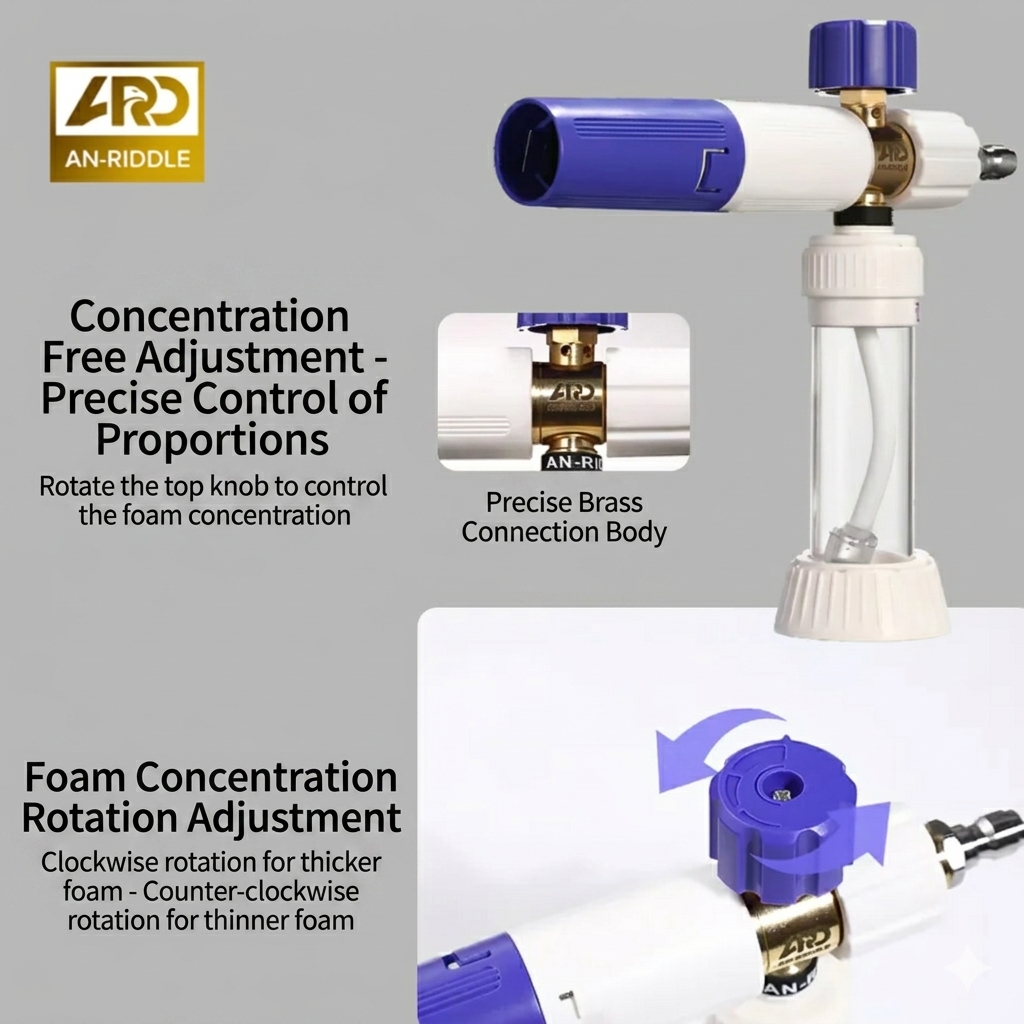

• Foam Thickness - The top blue knob controls the soap-to-water ratio. Turning it clockwise produces thicker, denser foam, while turning it counter-clockwise creates a thinner mixture.

• Connection - Use the 1/4" stainless steel quick-connect adapter to attach the cannon to your pressure washer.

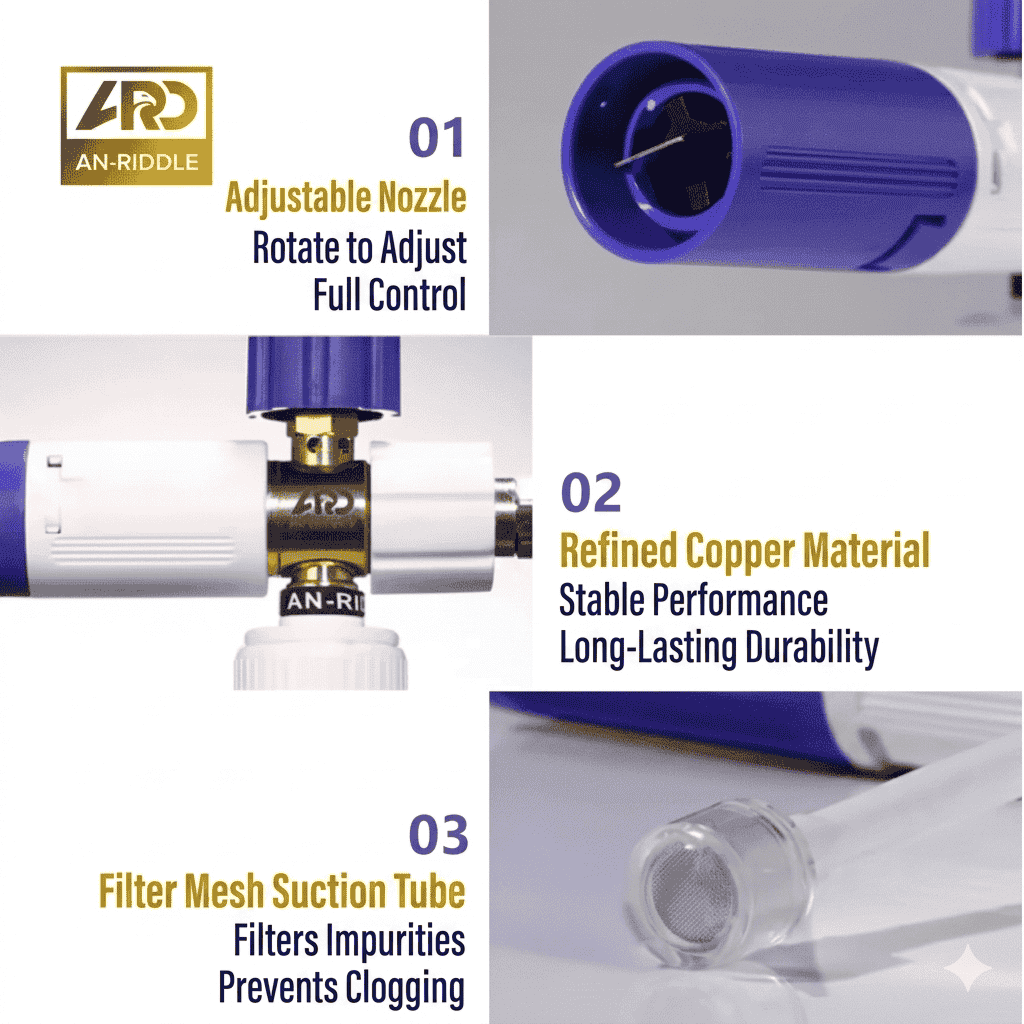

• Clog Prevention - It includes a specialized suction tube with a built-in filter mesh at the bottom to prevent dirt and impurities from clogging the internal system.

• Premium Build Quality - The unit is constructed with a high-precision brass body and high-density plastic components for heat and corrosion resistance.

• Fast & Secure - Users can choose between a magnetic connection for the fastest bottle changes or a traditional screw-on thread for maximum stability.

Instruction

• Select Your Pot - Choose between the magnetic pot (quick click) or the negative pressure pot (screw-on).

• Add Solution - Fill up your preferred car wash concentrate into the bottle. Pre dilution is not required with this high-performance model.

• Connect - Use the 1/4" stainless steel quick-connect adapter to attach the cannon to your pressure washer.
